Wave Spring Application Examples
Solutions for Shock Absorption, Vibration Damping, and Precision Support in Industrial Machinery Using Metal Wave Springs
Wave Spring Technology Overview
Wave springs are elastic metal components with a unique wavy structure that provides efficient energy storage and release capabilities. This spring design delivers higher elastic force than traditional coil springs in confined spaces while offering excellent fatigue resistance and precise load characteristics.
Key Advantages
Wave springs achieve simultaneous multi-coil force distribution through their wavy structure, significantly improving operational efficiency and load-bearing capacity. Their compact design, high fatigue life, and precise elastic properties make them indispensable components in industrial machinery.
Cylindrical Shock Absorption System
Application Scenario
This example demonstrates wave springs applied in a shock absorption system between cylindrical mechanical components and annular support structures. The springs closely conform to the cylinder surface, providing radial support and vibration damping through their wavy structure.
Functionality
Positioned between the cylinder and annular structure, wave springs effectively absorb mechanical vibrations, reduce operational noise, and provide stable elastic support in the axial direction. This design ensures component stability during high-speed operation while preventing damage from hard impacts.
Precision Mechanical Connection Components
Application Scenario

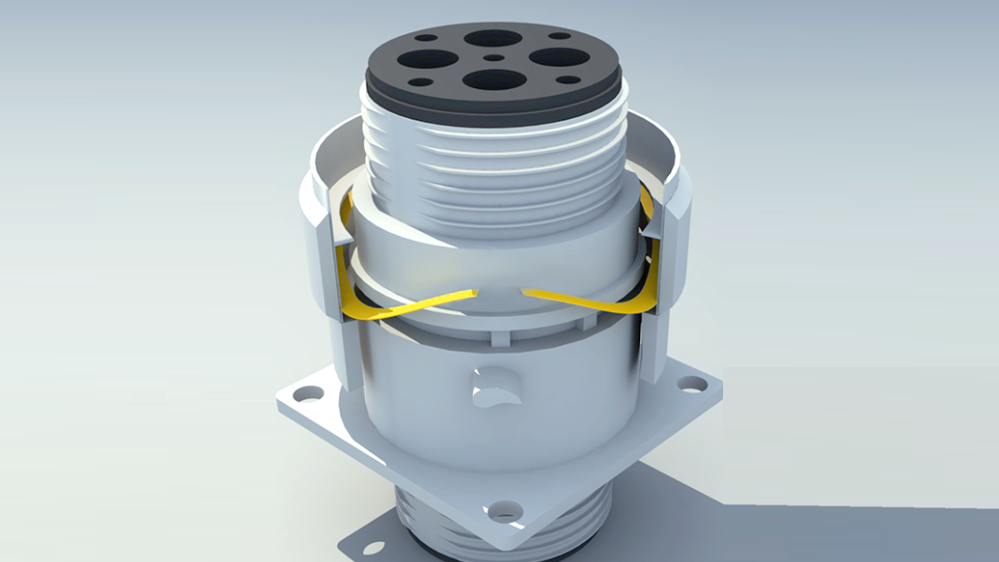

This example demonstrates wave springs applied in industrial mechanical connection components. The springs are embedded between two metal annular structures, with a black disk featuring mounting holes on top and a square base with mounting holes at the bottom.
Functionality
Wave springs in this system provide axial elastic support, compensating for component tolerances and ensuring connection tightness and stability. Their wavy structure allows multi-directional load distribution, effectively absorbing impacts and vibrations to protect precision connection points.
Space Efficiency
The wavy design of wave springs provides higher elastic force in confined spaces, saving up to 40% axial space compared to traditional coil springs.
Exceptional Fatigue Resistance
Special materials and heat treatment processes give wave springs outstanding fatigue resistance, making them suitable for high-frequency reciprocating applications.
Precise Load Control
The wavy structure enables multiple coils to bear loads simultaneously, providing more uniform load distribution and precise force control.
Fast Response
The unique geometry allows for quicker response times, making wave springs ideal for applications requiring rapid reset.
